Toda Camshaft F20C/F22C S2000

Toda Racing Honda F20C/F22C High Power Profile Camshafts

SKU: Toda-F20-Cams Categories: , , Tags: , , , , , Brand:

CHF665

Toda Racing Honda F20C/F22C High Power Profile Camshafts

F20C/F22C Honda S2000

Toda Racing Honda F20C and F22C High Power Profile Camshafts

TODA Racing uses the latest design and manufacturing technologies to produce camshafts. All TODA parts are designed, tested, and manufactured using the IBM CATIA CAD/CAM/CAE system.

TODA High Power camshafts for the F20C/F22C engines are available in six different specifications, ranging from mild NA (Spec A2), to full race (Spec F).

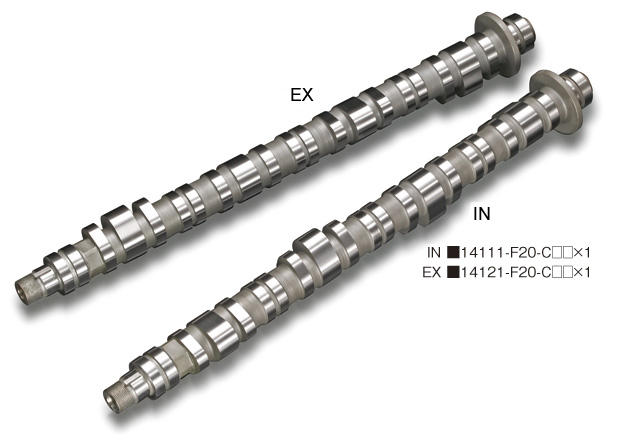

F20C/F22C High Power Profile Camshaft
Part No. Angle (valve lift) Type Price
♦14111-F20-C2A A2 : 235(8.0) / 295(13.0) / 240(8.5) IN 665CHF
♦14121-F20-C2A A2 : 230(8.0) / 290(12.0) / 235(8.5) EX 665CHF
14111-F20-C2B B2 : 250(11.0) / 302(13.2) / 250(11.0) IN 665CHF
14121-F20-C2B B2 : 250(11.0) / 292(12.7) / 250(11.0) EX 665CHF
14111-F20-C2C C2 : 250(11.0) / 307(13.2) / 250(11.0) IN 665CHF
14121-F20-C2C C2 : 250(11.0) / 297(12.7) / 250(11.0) EX 665CHF
*On installing confirming that there is enough, valve to piston clearance, valve to valve clearance, cam lob to follower clearance during mid cam operation.
*Caution: finger follower (roller rocker-arm) may need modifying due to contact with the cam lob.
*The cam angles for Primary, Mid, Secondary are indicated.
*Standard valve spring cannot be used
*TODA Up Rated Valve Spring required
♦ Can idle with STD ECU.
*This product is recommended to use in conjunction with the following Toda products.
Free Adjusting Cam Gears, Heavy Duty Timing Chain, Heavy Duty Oil Pump Chain, Heavy Duty Chain Tensioner

Additional information

Weight 5 kg
Road Legal in Switzerland

Compatiblity

Camshaft Specs

A2 : 235(8.0) / 295(13.0) / 240(8.5) IN, A2 : 230(8.0) / 290(12.0) / 235(8.5) EX, B2 : 250(11.0) / 302(13.2) / 250(11.0) IN, B2 : 250(11.0) / 292(12.7) / 250(11.0) EX, C2 : 250(11.0) / 307(13.2) / 250(11.0) IN, C2 : 250(11.0) / 297(12.7) / 250(11.0) EX
