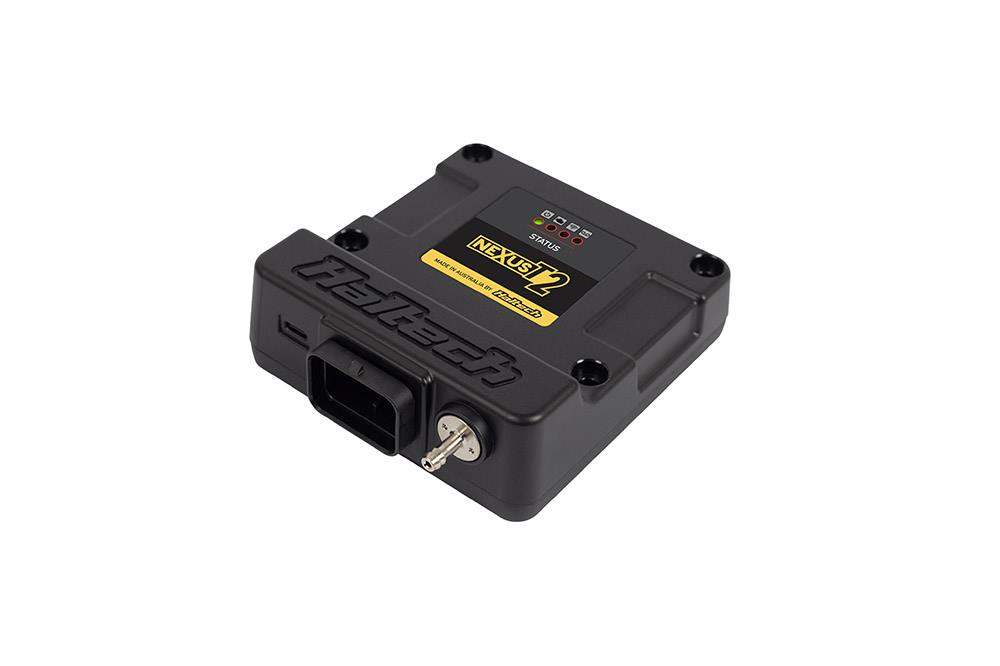

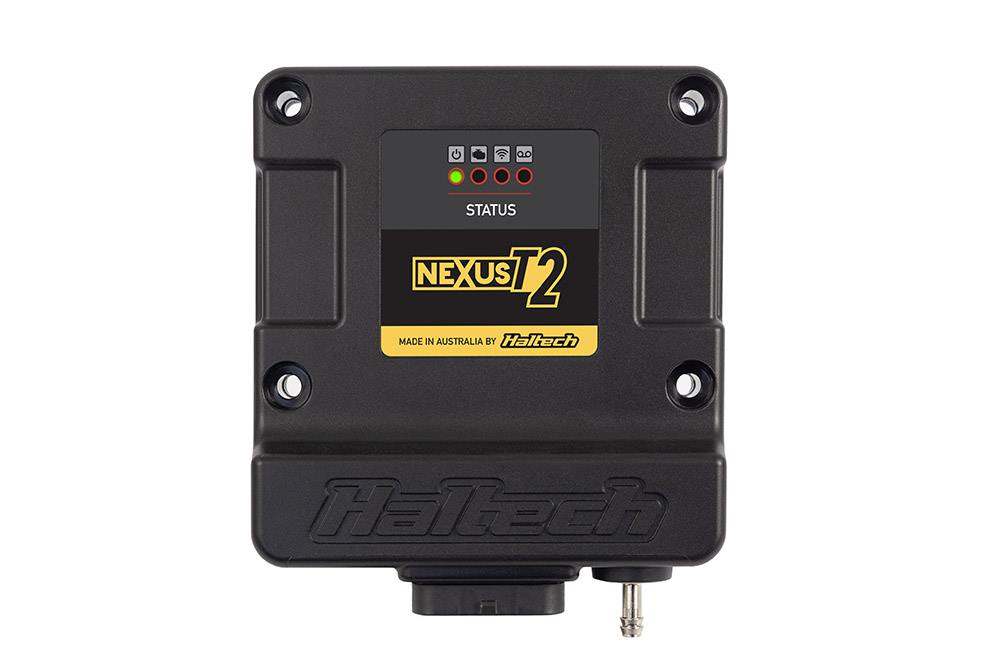

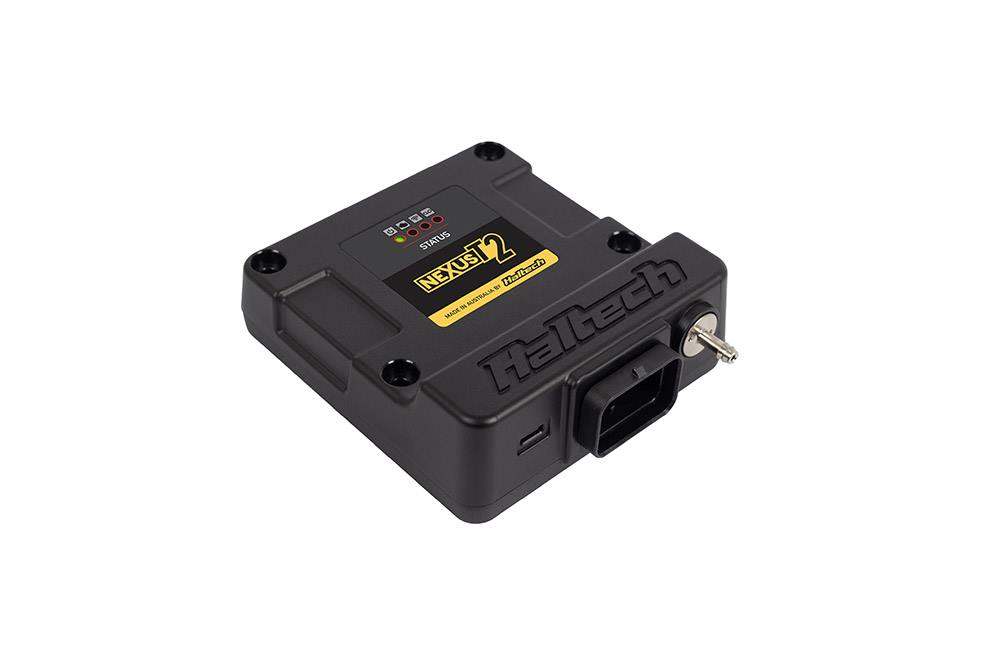

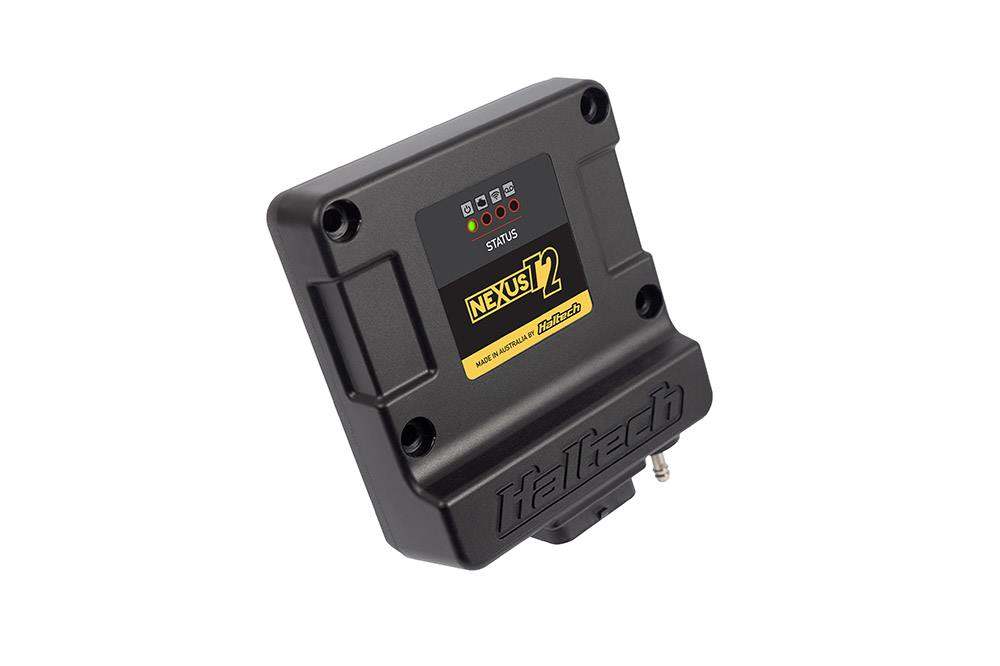

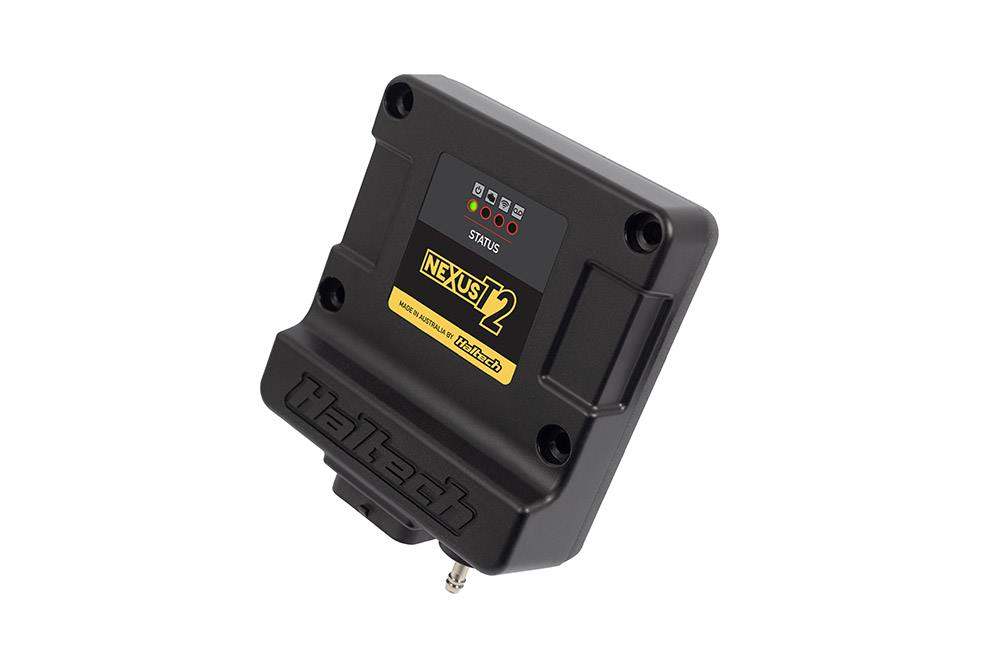

We're introducing the Nexus T1 (HT-210000) and Nexus T2 (HT-211000), Haltech's new entry-level standalone ECU line. Built for anyone stepping into standalone engine management for the first time, without cutting corners on features.
Nexus T1 covers 4 injector and 4 ignition outputs. Nexus T2 steps up to 6 and 6. Both can be used on engines up to 12 cylinders in batch-fire or semi-sequential configuration.
Designed as the successor to the Elite 550/750 range

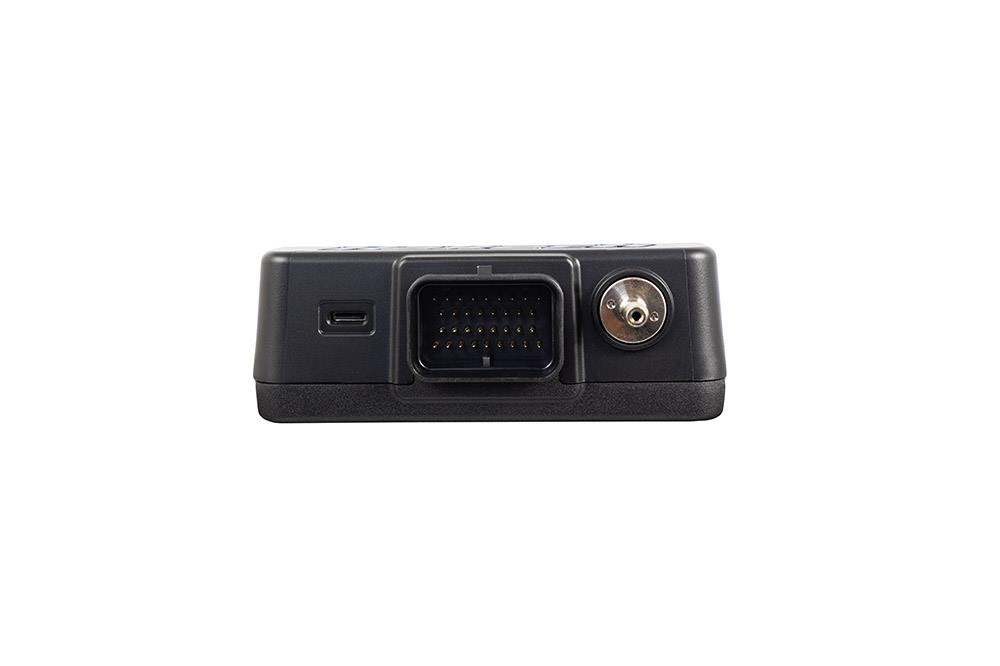

Nexus T1 is the successor to the Elite 550 (HT-150400), and Nexus T2 is the successor to the Elite 750 (HT-150600). The connector and pinout are identical, so the T-Series is compatible with any wiring kits you've already developed for the Elite 550/750. The only wiring difference is pin 13 (Knock/SPI 2), which can now also be used as a knock input on the T-Series, in addition to its existing SPI 2 function (the Elite 550/750 has no knock control at all).
Beyond the connector, the T-Series is a genuine step up over Elite 550/750:
| Feature |
Elite 550/750 |
Nexus T-Series |
| Wireless tuning (WiFi) |
No |
Yes |
| Haltech Connect App |
No |
Yes |
| Engine Protection |
Single Level |
Multi Level |
| Oscilloscope |
General-purpose, 4-channel, but no trigger, home or DPI voltage measurement/waveforms |
General-purpose, 4-channel, voltage measurement on any channel |
| Onboard log storage |
2MB |
32MB |
| USB |
USB-B |
USB-C, 480 Mbit/s |
| Knock Control |
No |
Yes, single input, overall or per-cylinder |
| Nitrous Control Stages |
1 |
6 |
| CO2 Control |
No |
Yes |
| Race Timer |
No |
Yes |
| Shock Travel & Ride Height Sensors |
No |
Yes |
| Advanced Torque Management |
No |
Yes |
| Traction Control |
No |
Yes |
| Trans-Brake |
No |
Yes |
| Long-Term Learning |
Up to 3D |
Up to 4D |
| Variable Cam Control |
Single channel |
Up to 2 channels |
| Closed Loop Flat Shift |
Basic |
Advanced |
| Tuning Table Resolution |
32 x 32, 3D |
32 x 32 x 8, 4D |
| Analog Voltage Inputs (AVI) |
5 total (2 free, 3 fixed-function) |
5 (fully configurable) |
| Frequency/Speed Inputs |
2 x DPI |
2 x SPI (one shared with knock input) |
What's in the box
- Nexus T2 or T1 ECU
- USB-C Cable
- USB-C Dust Cap
- Mounting Bolts
Optional accessories (sold separately)
- HT-030009, AMP 34-pin Key 1 plug and pins set
- HT-181200, Nexus T2/T1 Basic universal wiring harness 2.5m (8')
- HT-181201, Nexus T2/T1 Premium universal wiring harness 2.5m (8')
- HT-159976, WB1 Bosch LSU 4.9 Single Channel CAN O2 Wideband Controller Kit
- HT-159986, WB2 Bosch LSU 4.9 Dual Channel CAN O2 Wideband Controller Kit
|
