If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug'n'Play Adaptor Kits. These adaptors plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.

Plugs directly into the OEM ECU harness.

The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.

The guide is accompanied by the full ECU manual and Software located on the USB drive provided with the ECU to refer to while completing your installation and configuration.

Suits: Plug 'n' Play replacement of the factory ECU for MY95-97 Toyota LandCruiser 80 Series with 1FZ-FE and manual transmission only. Supports sub tank transfer system. (European delivered models please confirm your ECU pin out with Haltech before ordering)

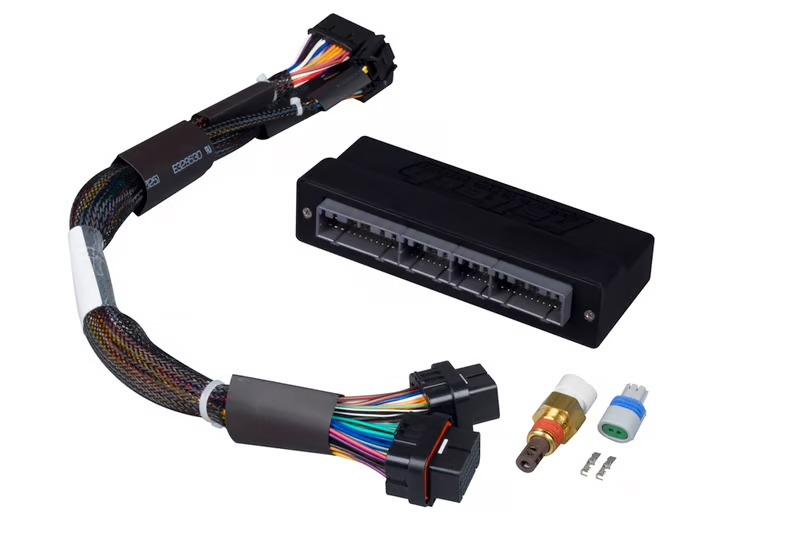

Includes: Plug'n'Play Adaptor Harness, M14 x 1.5 air Temperature Sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Spare Ignition outputs can be used (via custom wiring) to convert from distributor to direct fire Ignition system. (6 individual coils)
