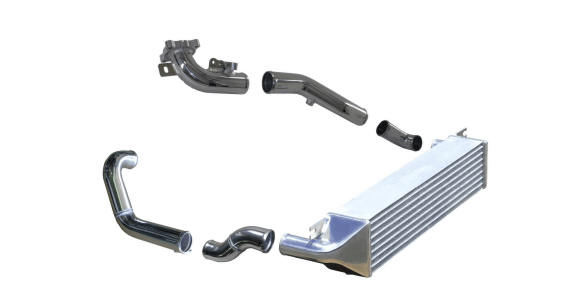

GReddy Intercooler KIT GXPA16 T-42F with Air Tube — Front/Rear Model Compatible

Product Features

◆ Approximately 1.2 times the core capacity of the OEM intercooler.
Uses offset inner fins with a core size of H141 × L625 × W100 mm.

◆ With the version equipped with the air tube, the piping from the turbine outlet to the throttle body is replaced with aluminum piping. This reduces the expansion and deformation that can occur with the OEM rubber hoses and resin piping, providing a stable supply of air to the engine.

◆ The joints use GReddy silicone hoses, which offer high heat resistance, pressure resistance, and ozone resistance, as well as excellent resistance to deterioration.

Product Specifications

◆ Intercooler Core: TYPE 42F
Core size: L625 × H141 × W100 mm

◆ Side tank port diameter: 50 mm (φ50), same size for IN/OUT
Buff-finished.

◆ Intake tube: 50 mm (φ50) aluminum on the IN/OUT sides
Buff-finished.

◆ Compatible with both MC versions:
6MT and 8AT

Compatible Vehicle

Vehicle: Toyota GR Yaris
Vehicle model: GXPA16
Engine: G16E-GTS

Model years:

• Pre-facelift: September 2020 (Reiwa 2) – March 2024 (Reiwa 6)
• Facelift: April 2024 (Reiwa 6) onward

※ Compatibility with pre-facelift vehicles equipped with Toyota Safety Sense has not yet been confirmed.
