Eventuri Carbon Intake System for Honda Civic Type-R FK8 CH-Legal

• Price includes an original Eventuri Carbon Air Intake System

to fit the following car:

• Honda Civic 10 Type R
• Model Year: 04.2017 -
• Engine & Power: 2.0 i-VTEC Type R (235kW|320HP)

Informations, notes, remarks & restrictions:

• With CH-Approval for swiss vehicle type approval 1HA493, 1HA511, 1HA564, 1HA580

The Honda FK8 Type R intake is the result of extensive design iteration through dyno testing and flow analysis. It was developed to achieve two objectives – 1) Maintain low inlet temperatures. 2) De-restrict the turbo inlet path. The first objective was met by enclosing the filter inside a carbon airbox and using the stock seal against the hood to block out the heat soak from the engine. Since the intake sits directly behind the radiator it is crucial that the filter is not exposed which would result in a loss of power through high IAT. The second objective was met by removing the flexible tubing and optimising the inlet path with a Venturi stack connected directly to the filter. Furthermore, we added a second inlet to the airbox with a scoop pulling in air from the inner wing area. This almost doubles the total cross sectional area through which the turbo can draw from as compared with the single entry on the stock system. Our carbon airbox enclosure has been designed to maximise the use of the available volume and block all sources of heat. The resulting performance gains and aesthetics are industry leading for the FK8 Type R.

Features:

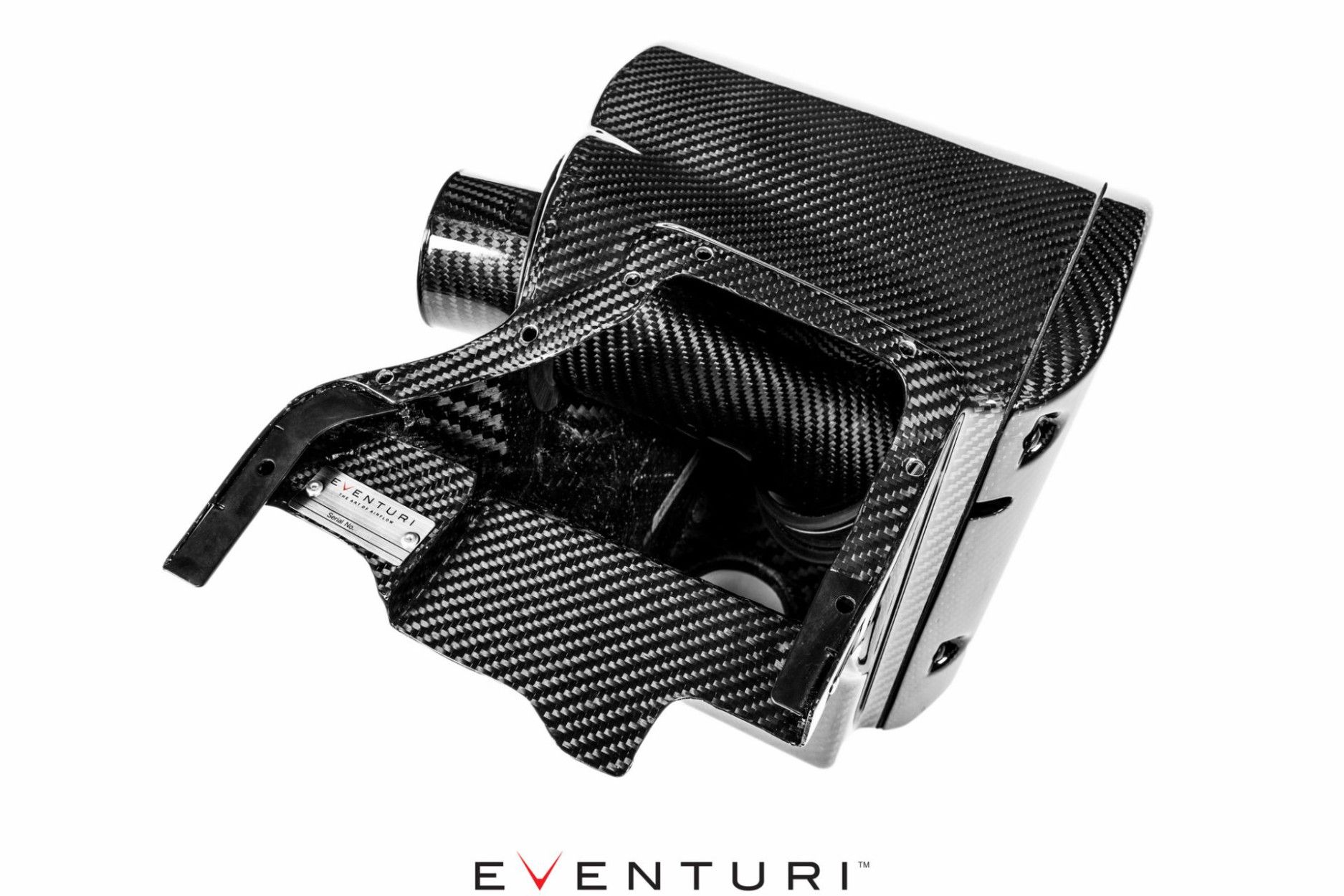

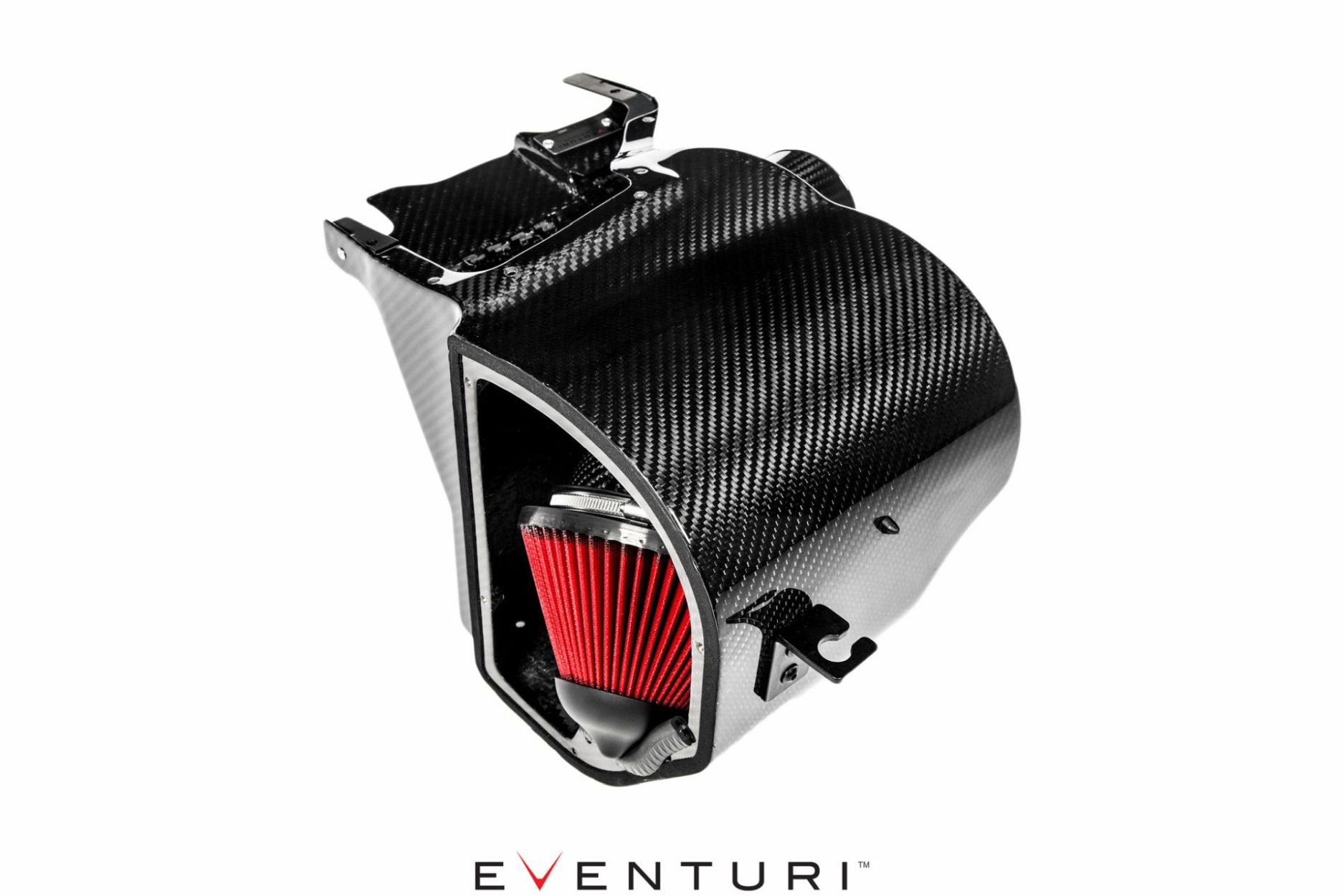

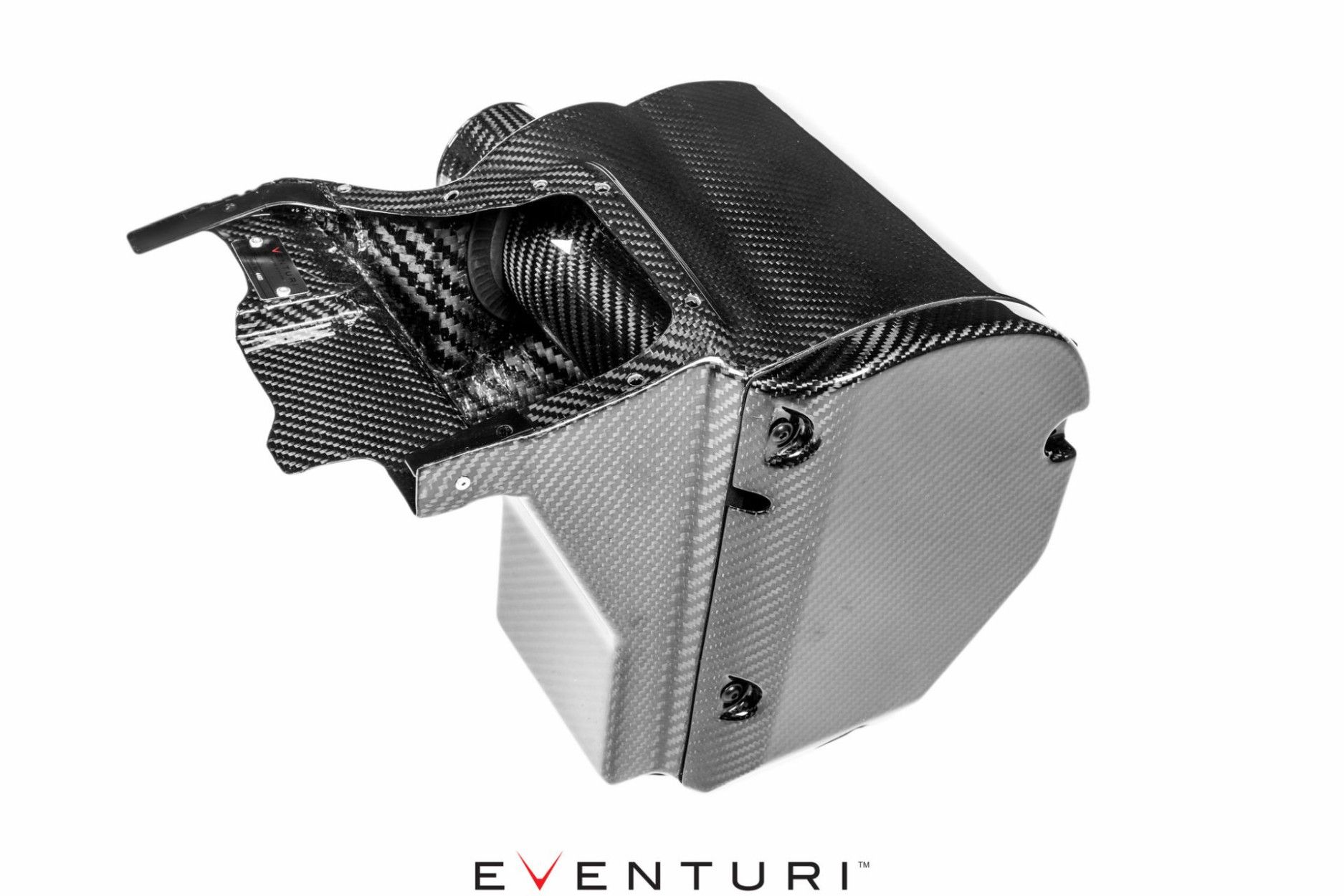

• Prepreg Carbon Fibre Airbox Enclosure

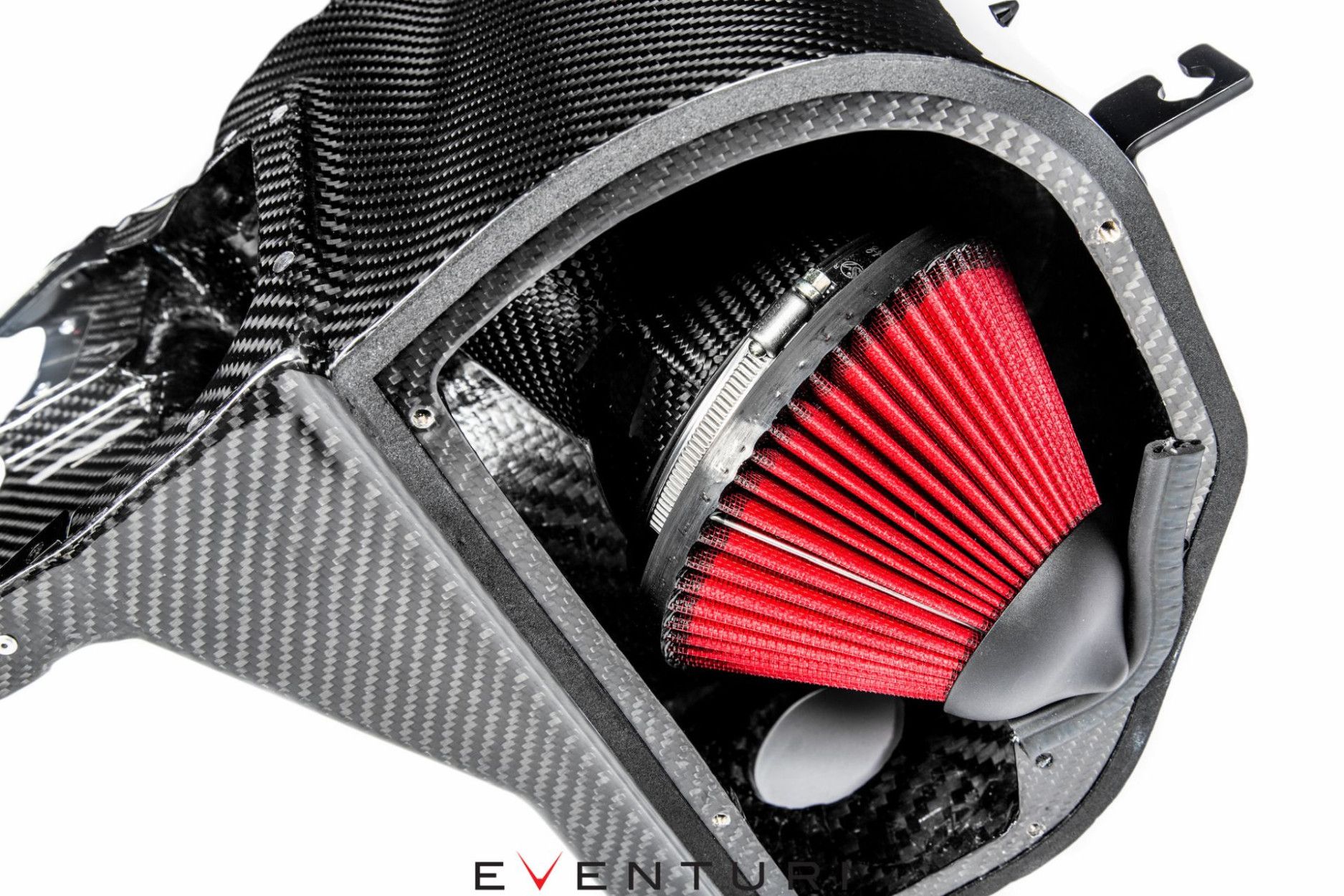

• Custom High Flow Air Filter ISO Tested
• Carbon Venturi stack with integrated MAF tube
• Secondary Inlet Scoop

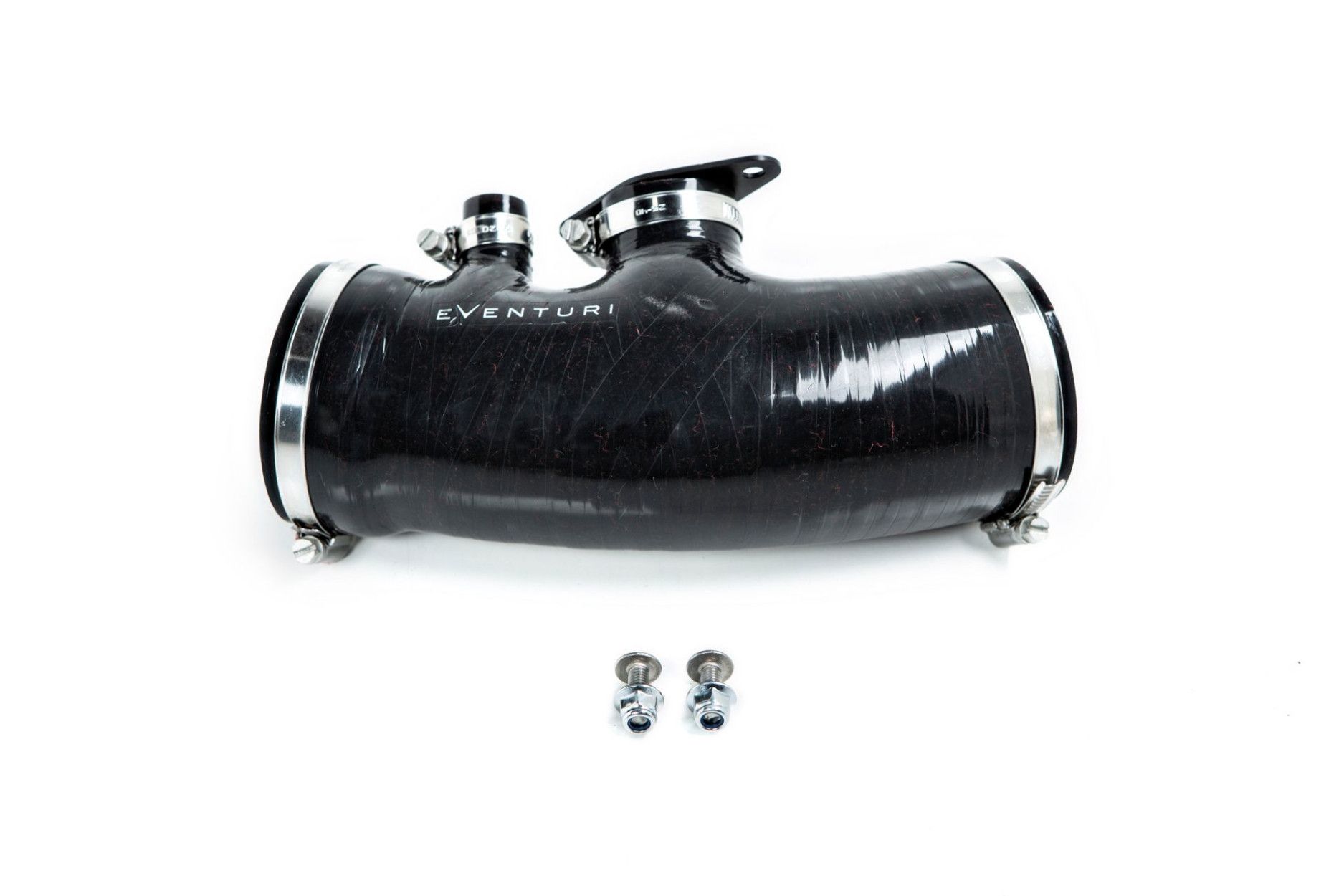

• High quality Silicon coupler with OEM specification hose clamps
• Laser Cut Bracket Work

Acceleration results summary:

• 60-130mph with Stock intake = 15.45 seconds
• 60-130mph with Eventuri intake = 14.27 seconds
• 100-200Km/h with Stock intake = 13.04 seconds
• 100-200Km/h with Eventuri intake = 12.17 seconds
• Performance Increase : 14-20hp, 22-29ft-lb
